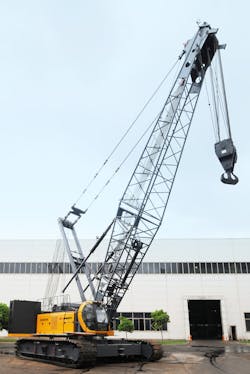

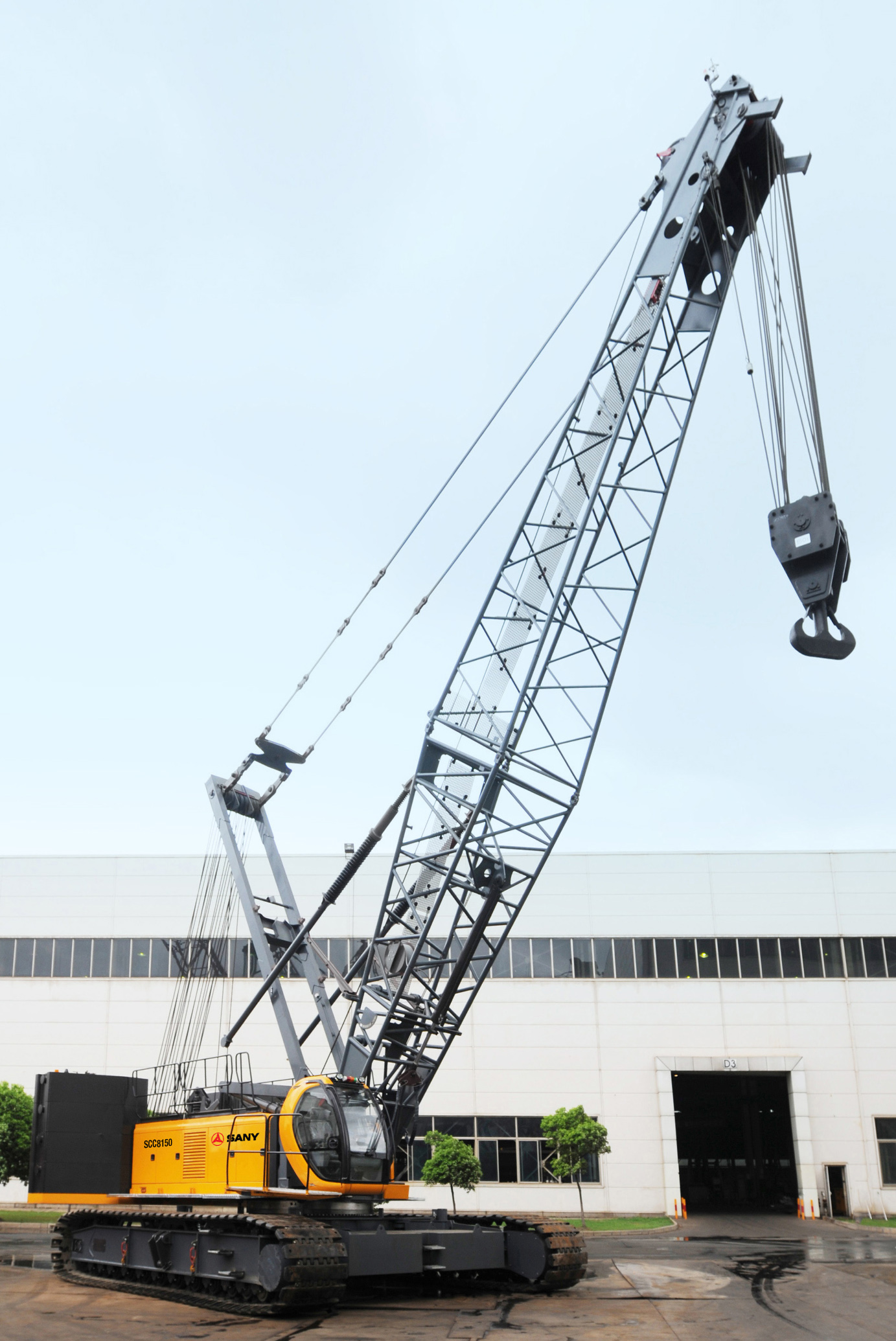

With a rated lift capacity of 165 tons, the new Sany SCC8150 crawler crane fills a strategic postion in Sany America’s crawler crane lineup midway between the 110-ton SCC8100 and 220-ton SCC8200 models. The new Scc8150 crawler crane achieves its maximum lift capacity at a radius of 16.1 feet. It may be configured with either a main boom that reaches up to 269 feet or a fixed jib up to 102 feet long. It is powered by a fuel-efficient 340-hp, Tier 4 interim-certified Cummins engine.
The Sany SCC8150 crawler crane offers control and reliability through its Rexroth hydraulic system, including the main pump, main valve and servo control. Independently driven drums include hydraulically powered planetary gears. The hydraulically driven swing system provides 360-degree rotation. The Porsche-designed UltraCab 2 provides enhanced ergonomics, large windows for clear visibility, heat and air conditioning, and function screens and video monitors to enhance operator control.
Other key capabilities include a boom-elevation device, emergency stop of all functions, two externally mounted cameras to monitor machine operations, aircraft warning light on the main boom, and shove-off protection that prevents the machine from working unless the operator is seated in the cab.
Independently driven crawler assemblies enable forward and reverse travel, pivot steering and counter rotation. Outfitted with up to 1,148 feet of 1-inch Diepa rope, the rated line pull of the crane’s main winch is 29,542 pounds and maximum line speed is 580 feet per minute. www.sanyamerica.com
