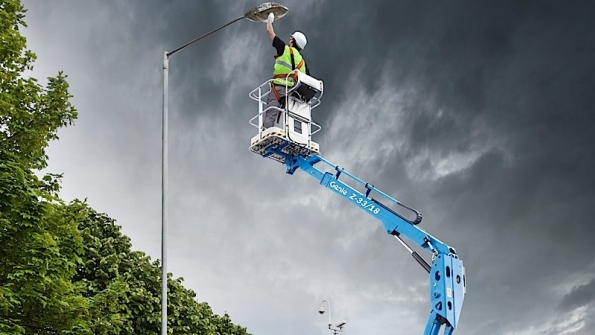

Designed for both indoor and outdoor maintenance applications, the new Genie Z-33/18 boom lift is suited to tasks on sensitive surfaces where space is restricted.
The Z-33/18 weighs 8,025 pounds and offers a ground clearance of 5.9 inches. Designed for applications on sensitive surfaces inside airports, shopping centers and theaters, in addition to routine outdoor maintenance tasks, the new lift includes features to help increase efficiency on jobsites where space is tight. Key features include solid non-marking or multi-surface tires as an option, long working cycles due to low-consumption AC drive transmission, a tight turning radius for maneuverability, the ability to drive at maximum height, and the Genie FastMast boom system that is designed to shorten ground-to-top lifting.
Featuring a 6.3 ft wheelbase providing a gradeability of 30 percent, the Genie Z-33/18 articulating boom lift offers a working height of 39.4 feet, a horizontal reach of 18.3 feet and an up-and-over clearance of 4.28 feet. In addition to a 2.6-foot-long by 3.1-foot-wide platform, the man basket supports weights of up to 440 pounds.
To make transport easier, this compact unit’s boom stows down to only 4.11 feet in width and 13.5 feet in length. Drive speed is 3.7 miles per hour combined with a 48V DC 315 Ah boom power source.
The lift features mechanical switches that are protected within the boom to avoid damage. It also sports the new Genie product design and improved ergonomic design features.
